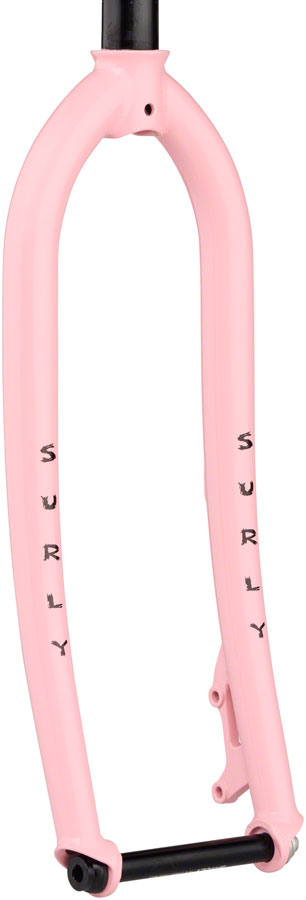

Surly Lowside Fork - 26/27.5" 15x110mm Thru-Axle 1-1/8" Straight Steerer Steel New Pig Smell

Designed and built alongside our Lowside Frame passionate Surly riders have willed this supply of Lowside Forks into existence. Made of 100% CroMoly steel and intentionally spared from everything non-essential—no extras no eyelets no braze-ons for mounting your touring gear—this barebones fork craves dirt jumps pub cruising and other single-speed shenanigans. Like the Lowside it’s equipped with modern trail standards like IS mount disc brakes and a 110x15mm thru-axle with a max tire clearance of 80mm.

Not suspension corrected

Clearance for 26” x 3” or 27.5” x 2.8” tires

Surly thru-axle included

Steerer Type	Straight
Max Rotor Size (Fork)	203
Brake Mount (Fork)	IS Disc Brake 160
Brake Type	Disc
Offset	47
Material	Chromoly Steel
Maximum Tire Clearance (Fork)	26 x 3.0", 27.5 x 2.8"
Axle to Crown Length	420
Front Axle Type	15mm Thru x 110mm
S.H.I.S. Stem Clamp Diameter	28.6
Color	New Pig Smell
Crown Race	30
Weight	1180
Wheel Size	27.5"
Defined Color	Pink
Steerer Tube Length (mm)	285
