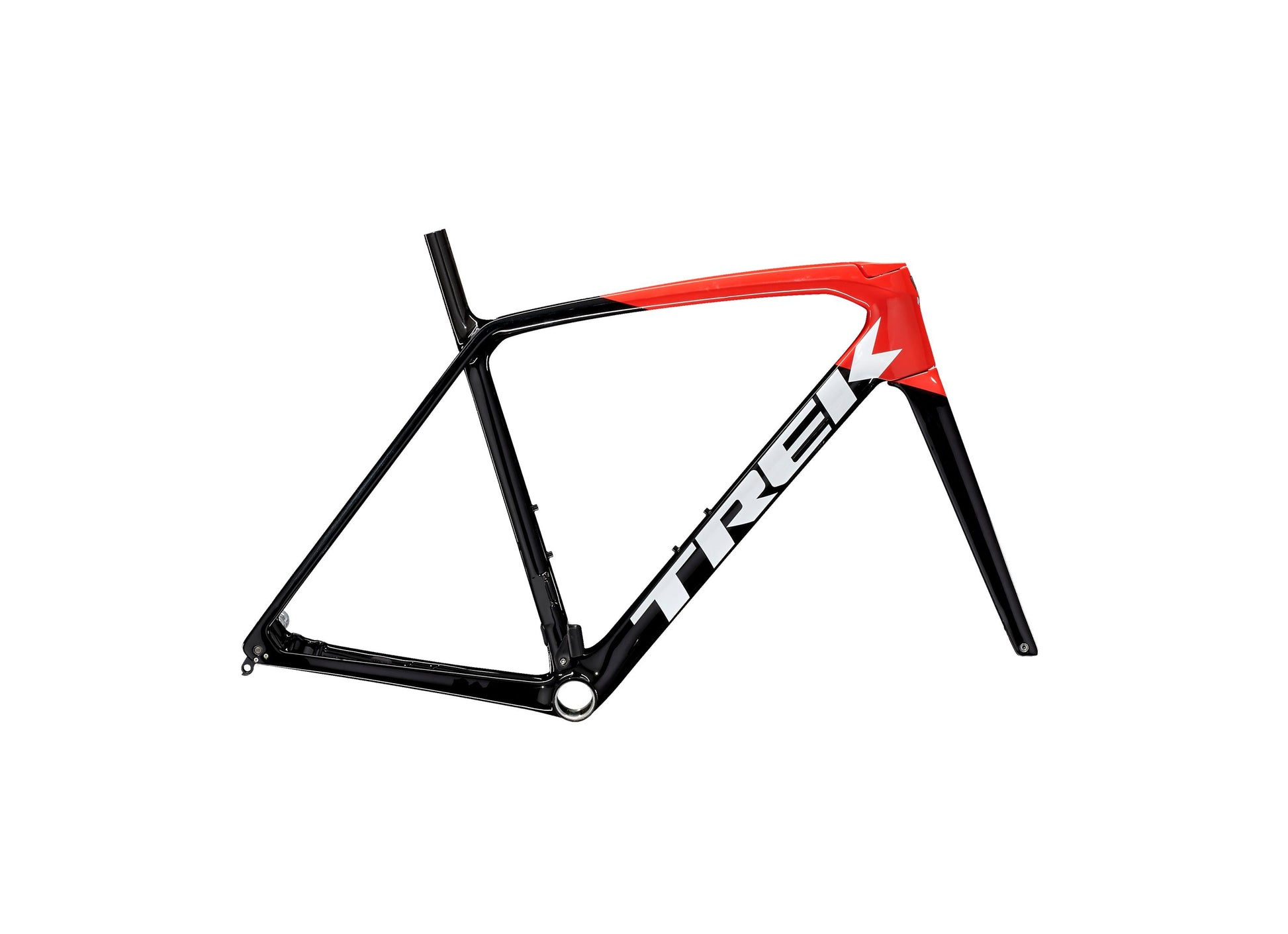

Emonda SL Disc F/S 47 Trek Black/Radioactive Red

Émonda SL Disc frameset is a perfect starting point for your custom lightweight build. Its aerodynamic frame is built with 500 Series OCLV Carbon and designed for disc brakes, which makes for a bike that's not only ultra-fast up climbs and on straightaways, but also one that brakes better in all weather conditions.

• Aerodynamic tube shaping makes this Émonda ready to roll wicked fast on flats and climbs alike
• It's not just super light, it's also perfectly balanced for great handling and cornering
• It's got climbing in its genes, and the lightweight OCLV Carbon frame lets you explore bigger mountains with less effort
• Like every Émonda, it's light and fast — and it's backed by our lifetime warranty

All-new aero design

Faster on climbs, faster on the flats. The aero tube shapes on the all-new Émonda give you an advantage wherever you’re riding. Plus, Émonda SLR is equipped with a sleek new Aeolus RSL bar/stem for front-end aero performance.

Awesome bikes for everyone

Every rider—regardless of gender, body type, riding style, or ability—deserves a great bike. The all-new Émonda is equipped with size-specific components that deliver a great fit to competitive riders of all genders.

Frame	Ultralight 500 Series OCLV Carbon, Ride Tuned performance tube optimization, tapered head tube, internal routing, DuoTrap S compatible, flat mount disc, 142x12mm thru axle
Fork	Émonda SL full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru axle
Skewer Front	Bontrager Switch thru axle
Skewer Rear	Bontrager Switch thru axle, removable lever
Front Derailleur	Mechanical front derailleurs must have a full-housing stop (example: Shimano toggle front derailleurs)
Seatpost	Not included

Geometry Chart

B B Drop	7.2
Chainstay Length	41
Eff Top Tube	51.2
Frame Reach	37.3
Frame Size Number	47cm
Frame Stack	50.7
Head Angle	72.1°
Head Tube Length	10
Offset	4.5
Saddle Rail Height Max Short	61.5
Saddle Rail Height Max Tall	65
Saddle Rail Height Min Short	55.5
Saddle Rail Height Min Tall	59
Seat Tube	42.4
Seat Tube Angle	74.6°
Standover	69.2
Trail	6.8
Wheelbase	97.2
Wheel Size	700c
